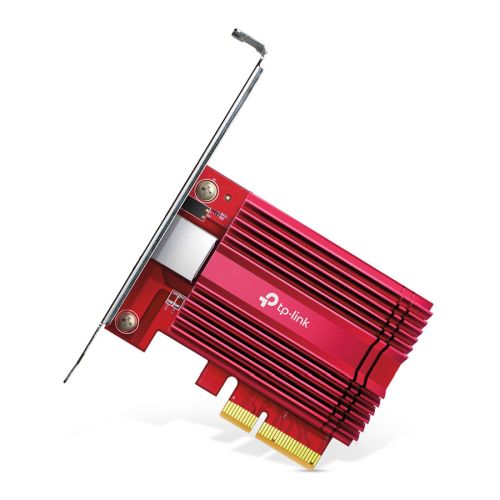

TP-LINK (TX401) 10GBase-T PCI Express Network Adapter, Backwards Compatible, CAT6A Cable, Low-Profile & Full-Height Brackets

  • img
  • Trustpilot reviews
Incl. Tax: £116.12
Excl. Tax: £96.77

Description

Specification

  • Adapter Type: PCI Express Adapter
  • Interface(s): 1 x PCI Express 3.0 x4
    1 x RJ45 Gigabit/Megabit Port
  • Transmission Method: Wired
  • Max Data Transfer Rate: 10 Gbps
  • Bands: Single Band
  • Standards and Protocols: “IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an,
    IEEE802.3az, IEEE 802.3x”
  • Antenna: –
  • LED: “10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act”
  • Flow Control: 802.3x
  • Dimensions: 120.8 x 98.2 x 21.5 mm
  • Environment: Operating Temperature: 0C~40C (32F ~104F)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Contents: 10 Gigabit PCIe Network Adapter (TX401)
    Standard/Low-Profile Brackets
    Quick Installation Guide
    Resource CD
    1.5 m CAT6A Ethernet Cable
  • Package Type: Retail
  • Package Weight: 0.3010 kg
  • Warranty: 3 Years
Customer reviews & experiences for Inside-Tech. Show more information.

Out of stock

Product details

Description

Gigabit PCI Express Network Adapter


  • 10 Gbps Networking – Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.
  • Versatile Compatibility – With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
  • CAT6A Ethernet Cable – To maximize TX401's performance, a 1.5 m CAT6A Ethernet Cable is included—rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.
  • Low-Profile and Full-Height Brackets – In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
  • Comprehensive System Support – Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs

Upgrade to 10G Networking
10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second—10× faster than standard Gigabit Ethernet. It’s a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.

 – 10 Gbps Internet Access – Make Full Use of Your High-Speed Internet Access
 – 10 Gbps NAS Connection – Lightning-Fast Local Data Transmissions
 – 10 Gbps Host Server Building – High Hardware Configuration for a Powerful Server

Play Never Ends with 10G
With 10 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

Local Data Transmissions in Seconds
For local connections, a 10G PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

Versatile, Multi-Speed Compatibility
10GBase-T is backwards compatible with multiple data rates, including 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps Base-T connectivity. The 10G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 10G networking smoothly.

QoS Support
A Bandwidth Buff for Gaming
Quality of Service technology ensures enough bandwidth and avoids network congestion for PC gaming. It delivers prioritized performance for gamers.

Strengthened PCI Express 3.0 ×4
Supports PCI Express Gen3 ×4 for more efficient data transmissions





Easy Setup
Simple software installation with the intuitive Utility on the provided CD





Comprehensive System Support
Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux, and macOS.
