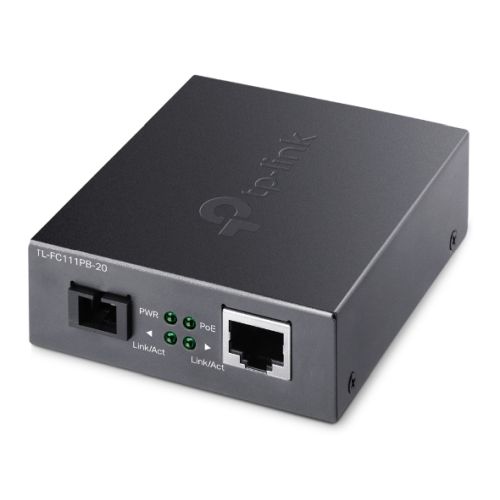

TP-LINK (TL-FC111PB-20) 10/100 Mbps WDM Media Converter with 1-Port PoE, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/Full-Duplex
Incl. Tax: £0.01
Excl. Tax: £0.01
Description
Specification
- Type: WDM Media Converter
- Enclosure Type: External
- Basic Functions: “Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km
Supports 802.3af PoE Output, Max 15.4W” - Ports: 1 x SC fiber optic
1 x PoE RJ45 - Standards and Protocols: “IEEE802.3, IEEE802.3i, IEEE802.3u”
- Wave Length: 1310nm Tx/1550nm Rx
- Network Media 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (<100 m)
- Transmission Distance: 20km
- LED Indicators: “PWR, Link/Act, PoE”
- Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
- Power Supply: 48 V/0.5 A
- Environment: Operating Temperature: 0C~50C (32F~122F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Type: Retail
- Package Weight: 0.4200 kg
- Warranty: 2 Years
-
Free UK Delivery on orders over £500
- Bulk Orders Request Quote
Bulk Orders
Out of stock
Product details
Description
10/100Mbps WDM Media Converter with 1-Port PoE
- Converts the data between fiber (optical signal) and copper (electric signal).
- Extends fiber distance up to 20 km.
- The 802.3af PoE output makes remote camera deployment easier and more convenient.
- WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.
- Wide operating temperature (0–50C) with reliability.
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
What This Product Does
TL-FC111PB-20 is a 10/100 Mbps media converter with 802.3af PoE output, providing 1× 10/100 Mbps PoE RJ45 port and 1× 100 Mbps SC fiber port, which can convert between electrical and optical signals. With up to 20 km fiber transmission distance and 802.3af PoE output, the media converter is designed to address the needs of flexible long-range surveillance deployment with optical fibers. It provides an economical path towards extending the distance of an existing network.
How This Product Works
TL-FC111PB-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111PB-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111PB-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111PB-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
