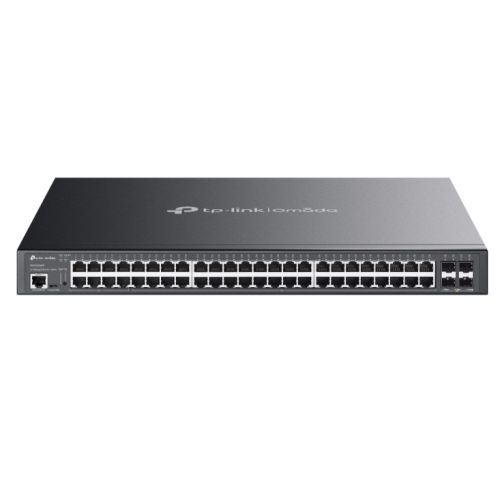

TP-LINK (SG3452XMPP) Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++, Rackmountable

Description

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 48
• Max RJ45 Transfer Rate: 10/100/1000 Mbps
• #Hide#Max SFP Transfer Rate: 10G SFP
• Interface(s): “48 x 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+)
  4 x 10G SFP+ Slots
  1 x RJ45 Console Port
  1 x Micro-USB Console Port”
• PoE Ports (RJ45): Standard: 802.3at/af/bt compliant
  PoE++ Ports: Ports 1~8 (up to 90 W PoE Output per Port)
  PoE+ Ports: Ports 9~48 (up to 30 W PoE Output per Port)
  Power Budget: 750 W
• Switching Capacity: 176 Gbps
• Power Supply: 100-240 V AC~50/60 Hz
  Max Power Consumption: 913.4 W (110V/60Hz) ( with 750 W PD connected)
• Dimensions: (WxDxH) 440 x 330 x 44 mm
• Mac Address Table: 16 K
• Packet Forwarding Rate: 130.9 Mpps
• Jumbo Frame: 9 KB
• Additional Features: Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule

  ISP Features:
  L2PT (Layer 2 Protocol Tunneling)
  Device Link Detect Protocol (DLDP)
  PPPoE ID Insertion
  ERPS
  802.3ah Ethernet Link OAM
  DDM
  sFlow

• Quality of Service: “8 priority queues
  802.1p CoS/DSCP priority
  Bandwidth Control: Port/Flow-based Rating Limiting
  Smoother Performance
  Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
  Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR”
• Layer Features: “L2 and L2+ Features
  128 IP Interfaces: Support IPv4/IPv6 Interface
  Static Routing: 48 IPv4/IPv6 Static Routes
  Static ARP: 128 static entries
  512 ARP Entries
  Proxy ARP
  Gratuitous ARP
  DHCP Server
  DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
  DHCP L2 Relay
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  802.3x Flow Control
  Mirroring

  “

• .: “L2 Multicast
  Supports 1000 (IPv4, IPv6) IGMP groups
  IGMP Snooping
  IGMP Authentication
  Multicast VLAN Registration (MVR)
  MLD Snooping
  Multicast Filtering: 256 profiles and 16 entries per profile”
• VLAN: “VLAN Group: Max 4K VLAN Groups
  802.1q Tagged VLAN
  MAC VLAN: 30 Entries
  Protocol VLAN: Protocol Template 16, Protocol VLAN 16
  Private VLAN
  GVRP
  VLAN VPN: VLAN Mapping, VLAN Replace
  Voice VLAN”
• Access Control: “Time-based ACL
  MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
  IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
  Combined ACL
  Packet Content ACL
  IPv6 ACL
  Policy: Mirroring, Redirect, Rate Limit, QoS Remark
  ACL applies to Port/VLAN”
• Security: IP-MAC-Port Binding
  IPv6-MAC-Port Binding
  DoS Defend
  DHCP Filter
  Static/Dynamic Port Security: Up to 64 MAC addresses per port
  Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
  802.1X
  AAA (including TACACS+)
  Port Isolation
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  IP/Port/MAC-based access control
• Management: “Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Management Features:
  Web-based GUI
  CLI through console port, telnet
  SNMPv1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP AutoInstall
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  EEE
  Password Recovery
  SNTP
  System Log”

• Environment: Operating Temperature: 0–40°C (32–104°F)
  Storage Temperature: -40–70°C (-40–158°F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing
• Package Contents: SG3452XMPP Switch
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Warranty: Limited Lifetime
• #Hide#POE: Yes
