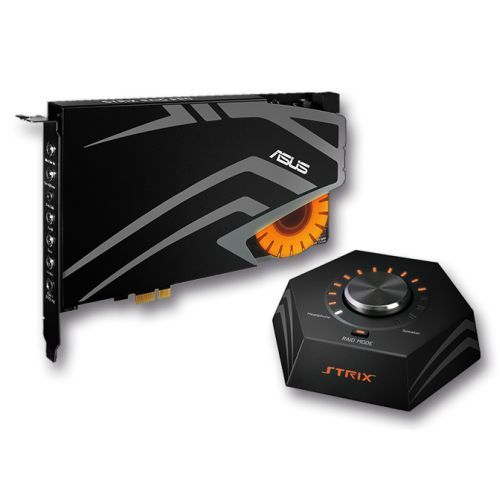

Asus STRIX RAID DLX Gaming Soundcard, PCIe, 7.1, Audiophile-Grade DAC, 124dB SNR, Raid Mode & Control Box

  • img
  • Trustpilot reviews
Incl. Tax: £191.99
Excl. Tax: £159.99

Description

Specification

  • Internal/External: Internal
  • Interface: PCI Express
  • Channels: 7.1
  • Inputs/Outputs: Analog Output:
    5 x 3.5 mm jack

    Analog Input:
    1 x 3.5 mm jack

    Digital:
    1 x S/PDIF out
    1 x Box Link

  • Chipset: C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 384KHz / 24bit)
  • Signal-to-Noise Ratio: Output (Front-out): 124 dB
    Output (Headphone-out): 124 dB
    Input: 117 dB
  • Frequency Response: “10 Hz to 48 KHz (-3dB, 24bit/96KHz input)”
  • Sample Rate and Resolution: Analog Playback:
    44.1K-192KHz @ 16bit/24bit
    Analog Recording:
    44.1K-192KHz @ 16bit/24bit
    S/PDIF Digital Output:
    44.1K-192KHz @ 16bit/24bit
    ASIO 2.0 Driver Support:
    44.1K-192KHz @ 16bit/24bit
  • Additional Features: See Overview
  • Software: Sonic Studio
  • Accessories: Control box x 1
    S/PDIF optical adaptors x 1
    Driver CD x 1
    Quick start guide x 1
    Box link cable x 1
  • Weight/Dimensions: 190 x 130 x 22 mm ( L x W x H )
  • Package Type: Retail
  • Package Weight: 1.4020 kg
  • Warranty: 2 Years
Customer reviews & experiences for Inside-Tech. Show more information.

Out of stock

Product details

Description

STRIX RAID DLX

7.1 PCIe gaming sound card set with an audiophile-grade DAC and 124dB SNR

  • Instant-on Raid Mode: Customize in-game audio with one click
  • 124dB signal-to-noise ratio (SNR) and audiophile-grade DAC: Enjoy high-fidelity, immersive sound
  • Sonic Studio utility: Take full control over loads of sound technologies via an intuitive, one-page interface
  • Sonic Radar Pro: Lets you pinpoint the exact location of in-game sounds and enhances critical audio details like enemy footsteps for an aural advantage
  • 600ohm headphone amplifier: For enhanced bass and clear, detailed sound









Sharpen your hearing
Take control

Strix Raid DLX is a premium sound card set built with audiophile-grade components to satisfy gamers who demand ultimate audio performance. Strix Raid DLX features rich, immersive, and clear sound with an incredible 124dB signal-to-noise ratio (SNR), and a 600ohm headphone amplifier for deep, tight bass. The simple yet powerful Sonic Studio sound utility and control box provides complete sound card control and allows instant in-game audio adjustments.






Gamer-Friendly Design
Instant in-game audio adjustment with Raid Mode
ASUS exclusive Raid Mode can be turned on right in the heat of gaming action with just one-click on the audio control box to provide the exact audio adjustment you want. With this powerful combination of Raid Mode and the audio control box, gamers no longer need to pause the game and open sound software to adjust their audio, ensuring they never miss a single moment of gaming action.

Gamers can save their favorite or most frequently-used audio adjustments — Equalizer, Bass Boost, Virtual Surround, and Mic Volume — into custom presets that they can instantly turn on or off with the dedicated Raid Mode button on the audio control box. It also has a convenient knob to adjust the Raid Mode intensity level.






Total Audio Control

Take complete control of your audio with Sonic Studio
Strix Raid Pro features the latest Sonic Studio software suite for full control over every sound technology, from equalization (EQ) to 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements.




Gain the gaming edge with Sonic Radar Pro!
Modern games are more than graphics – precise audio positioning gives gamers a distinct edge over enemies. That's why Strix Soar includes Sonic Radar Pro, an ASUS exclusive technology that visualizes and enhances in-game sounds, giving you a vital edge in first-person shooters.

Fire up your favorite game and Sonic Radar Pro displays a ‘radar' HUD (heads-up display) that pinpoints in-game actions relative to your position, so you'll know exactly where you are on the battlefield and what's happening around you!

Multiple radar-enhancers can be enabled in order to visualize and boost specific sounds such as footsteps, gunshots, and call-outs. Sounds are plotted on the 360-degree HUD, even when there's no clear line of sight, so invisibility is no barrier to pinpointing opponents, giving you a distinct advantage over other players!

What's more, Sonic Radar's on-screen appearance and position is completely customizable, so you can make it work just the way you want, with whatever game you want!





Game with Crystal-clear Audio
Winning formula for exceptional audio quality

124dB signal-to-noise ratio (SNR) for extraordinary audio clarity
High-fidelity grade ES9016S DAC delivers unrivalled, jitter-free sound and an exceptional 124dB signal-to-noise ratio (SNR) for 64 times greater clarity than average onboard audio.


Sound detail boost with 600ohm integrated headphone amplifier
The powerful TI LME49600 headphone amp lets you experience the full potential of your gaming headset. A 600ohm headphone amplifier provides enhanced bass and clear, detailed sound.


Hyper Grounding Technology
Noise-blocking multi-layer PCB developed with decades of ASUS professional layout expertise
