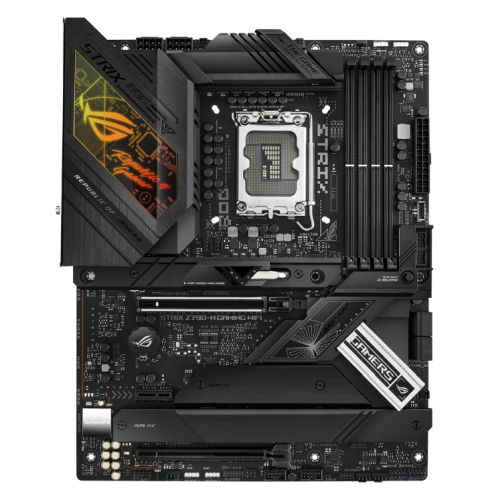

Asus ROG STRIX Z790-H GAMING WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

  • img
  • Trustpilot reviews
Incl. Tax: £311.44
Excl. Tax: £259.53

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: Intel 1700
  • Chipset: Intel Z790
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 7800+(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • PCI/PCI Express: 1 x PCIe 5.0 x16
    1 x PCIe 4.0 x16 (supports x4 or x4/x4 mode)
    1 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280/22110) – PCIe
    1 x M.2 (2242/2260/2280) – PCIe
    1 x M.2 (2242/2260/2280/22110) – PCIe
    1 x M.2 (2242/2260/2280) – SATA & PCIe
  • RAID: “Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10”
  • Wireless: Wi-Fi 6E
    2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5/6GHz frequency band
    Bluetooth v5.3
  • LAN: 2.5GB LAN
  • Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
  • USB Ports Supported: “1 x USB 3.2 Gen2x2 Type-C (at back)
    1 x USB 3.2 Gen2 Type-C (at back)
    2 x USB 3.2 Gen2 Type-A (at back)
    6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)
    1 x Front Panel Type-C USB 3.2 Gen2x2 Header”
  • Back Panel I/O Ports: “1 x USB 3.2 Gen2x2 Type-C)
    3 x USB 3.2 Gen2 (2 Type-A, 1 Type-C)
    4 x USB 3.2 Gen1 Type-A
    2 x USB 2.0
    1 x DisplayPort
    1 x HDMI
    1 x Wi-Fi Module
    1 x Intel 2.5Gb Ethernet
    5 x Gold-plated audio jacks
    1 x Optical S/PDIF out
    1 x BIOS FlashBack button
    1 x Clear CMOS button”
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin CPU OPT Fan
    1 x 4-pin AIO Pump
    5 x 4-pin Chassis Fan
    1 x 24-pin Main
    2 x 8-pin +12V
    4 x M.2 sots (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen2x2 Type-C
    1 x USB 3.2 Gen1
    2 x USB 2.0
    3 x Addressable Gen2
  • .: 1 x Aura RGB
    1 x CPU Over Voltage jumper
    1 x Front Panel Audio
    1 x 20-3 pin System Panel
    1 x Thermal Sensor
    1 x Thunderbolt
  • Accessories: 2 x SATA 6Gb/s cables
    1 x Thermal pad for M.2
    1 x ASUS Wi-Fi moving antennas
    1 x Cable ties package
    1 x M.2 backplate Q-Latch package
    1 x M.2 Q-Latch package
    1 x ROG key chain
    1 x ROG Strix stickers
    1 x ROG Strix thank you card
    2 x M.2 Rubber Packages
    1 x M.2 backplate Rubber
    1 x User guide
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 2.3000 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
  • #Hide#Wi-Fi: Yes (Wi-Fi)
  • #Hide#RGB Lighting: Out of the box RGB lighting
Customer reviews & experiences for Inside-Tech. Show more information.

7 in stock

Configure & checkout

Product details

Description





Strike stealthily with the powerfully potent ROG Strix Z790-H.



Thick black heatsinks keep VRM temperatures under wraps, allowing Intel 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2×2 fully flesh out connectivity.



  • AI Overclocking – Effortless performance boost
  • AI Cooling II –  One-click fan tuning
  • PCIe 5.0 – x1 PCIe 5.0 x16 slot
  • USB 3.2 Gen 2×2 – x1 I/O port, and x1 connector
  • 16 + 1 Power Stages
  • DDR5 Memory – 7800+ MT/s, AEMP II, XMP
  • WiFi 6E
  • DIY Friendly





All-Round Performance
Every aspect of the Strix Z790-H is intelligently optimized so the processor, memory, and connected devices can run in lockstep in order to achieve breakneck speeds.




Leading Connectivity
Lightning-fast networking keeps the Strix Z790-H in sync with the outside world for uninterrupted gaming and creation. Furthering immersion is SupremeFX audio, which delivers crystal clear sound.



Play In Style
Black PCB and heatsinks compliment most hardware, and customizable RGB lighting furthers the flexibility. Pair the Strix Z790-H with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.



Software Utilities
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.

                                             ** Click here for full product details **
