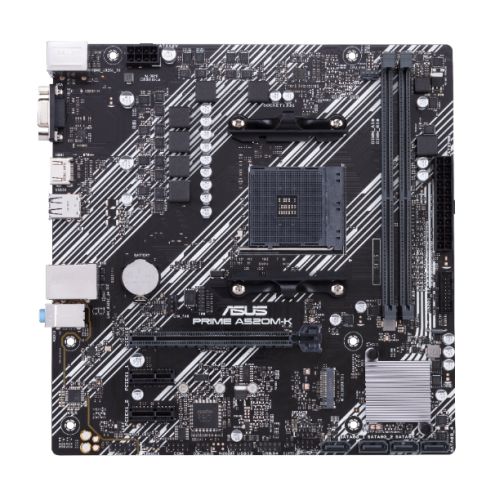

Asus PRIME A520M-K, AMD A520, AM4, Micro ATX, 2 DDR4, VGA, HDMI, M.2

  • img
  • Trustpilot reviews
Incl. Tax: £75.01
Excl. Tax: £62.51

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM4
  • Chipset: AMD A520
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support

    *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs

  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: 4600(O.C.)/4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
  • Maximum Memory: 64GB
  • Graphics: Integrated Graphics Processor*

    Graphics specifications may vary between CPU types

  • Graphics Ports: 1 x VGA
    1 x HDMI
  • Multi-GPU Support: –
  • PCI/PCI Express: 1 x PCIe 3.0 x16 (supports x16 mode)
    2 x PCIe 3.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2242/2260/2280) – SATA & PCIe
  • RAID: “RAID 0, 1, 10”
  • Wireless: –
  • LAN: GB LAN
  • Audio: Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
  • USB Ports Supported: “6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)”
  • Back Panel I/O Ports: 4 x USB 3.2 Gen1
    2 x USB 2.0
    1 x D-Sub
    1 x HDMI
    1 x Realtek RTL8111H 1Gb Ethernet
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo
  • Internal I/O Connectors: 1 x 4-pin CPU Fan
    1 x 4-pin Chassis Fan
    1 x 24-pin Main Power
    1 x 8-pin +12V Power
    1 x M.2 slot (Key M)
    4 x SATA 6Gb/s
    1 x USB 3.2 Gen1
    2 x USB 2.0
    1 x Clear CMOS
    1 x COM Port
    1 x Front Audio
    1 x S/PDIF Out
  • .: 1 x Speaker
    1 x SPI TPM (14-1pin)
    1 x 10-1 pin System Panel
  • Accessories: 2 x SATA 6Gb/s cables
    1 x I/O Shield
    1 x M.2 SSD screw package
    1 x Support DVD
    1 x User manual
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 0.8300 kg
  • Warranty: 3 Years
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
Customer reviews & experiences for Inside-Tech. Show more information.

766 in stock

Configure & checkout

Product details

Description

AMD A520 (Ryzen AM4) micro ATX motherboard with M.2 support, 1 Gb Ethernet, HDMI/D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 Type-A


  • AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection

Prime

ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.





Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.





Cooler by Design

PRIME A520M-K is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.





Build on a Solid Foundation

Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.





Little Things Make a Big Difference

Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a uniquely personal look.






Click here for full overview details



Related products

  • Asrock B460M STEEL LEGEND, Intel B460, 1200, Micro ATX, 4 DDR4, HDMI, DP, XFire, 2.5GB LAN, RGB Lighting, M.2

    Prices from
    Incl. Tax: £102.71
    Excl. Tax: £85.59

    Description

    Specification

    • Motherboard Type: Desktop
    • Form Factor: Micro ATX
    • Socket: Intel 1200 - Comet Lake
    • Chipset: Intel B460
    • #Hide#DDR Type: DDR4
    • CPU Support: Click here for CPU support
    • RAM Technology: DDR4 (Dual Channel)
    • RAM Slots: 4 x DIMM
    • RAM Speeds: 2933 / 2800 / 2666 / 2400 / 2133 MHz
    • Maximum Memory: 128GB
    • Graphics: Supports Intel HD Graphics
    • Graphics Ports: 1 x HDMI
      1 x DisplayPort
    • Multi-GPU Support: Supports AMD Quad CrossFireX and CrossFireX
    • PCI/PCI Express: 2 x PCIe 3.0 x16
      1 x PCIe 3.0 x1
    • Storage: 6 x SATA III
      1 x M.2 (2242/2260/2280) - PCIe
      1 x M.2 (2260/2280) - SATA & PCIe
    • RAID: "RAID 0, 1, 5, 10"
    • Wireless: -
    • LAN: 2.5GB LAN
    • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
    • USB Ports Supported: "1 x USB 3.2 Gen1 Type-C (at back)
      6 x USB 3.2 Gen1 (4 at back, 4 at mid-board)
      6 x USB 2.0 (2 at back, 4 at mid-board)"
    • Back Panel I/O Ports: 1 x Antenna Bracket
      1 x PS/2 Mouse/Keyboard
      1 x HDMI
      1 x DisplayPort 1.4
      1 x Optical SPDIF Out
      2 x USB 2.0
      4 x USB 3.2 Gen1 Type-A
      1 x USB 3.2 Gen1 Type-C
      1 x RJ-45 LAN
      HD Audio Jacks
    • Internal I/O Connectors: 1 x SPI TPM
      1 x Chassis Intrusion and Speaker
      1 x RGB LED
      2 x Addressable LED
      1 x CPU Fan
      1 x CPU/Water Pump Fan
      4 x Chassis/Water Pump Fan
      1 x 24 pin ATX
      1 x 8 pin 12V
      1 x Front Audio
      1 x Thunderbolt AIC
      2 x USB 2.0
    • .: 1 x USB 3.2 Gen1
    • Accessories: 2 x SATA Data Cables
      3 x Screws for M.2 Sockets
      1 x Standoff for M.2 Socket
    • Additional Features: See Overview
    • Package Type: Retail
    • Package Weight: 1.6600 kg
    • Warranty: 3 Year Replacement Warranty
    • #Hide#M.2 Slot(s): Yes (M.2)
    • #Hide#No. LAN Ports: 1 x LAN
    • #Hide#Max LAN Speed: 2.5GB LAN
    • #Hide#RGB Lighting: Out of the box RGB lighting
    View
    View

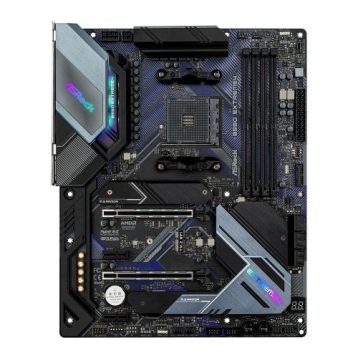

  • Asrock B550 EXTREME4, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, 2.5GB LAN, PCIe4, RGB Lighting, M.2
