Motherboards

Showing 85–90 of 90 results

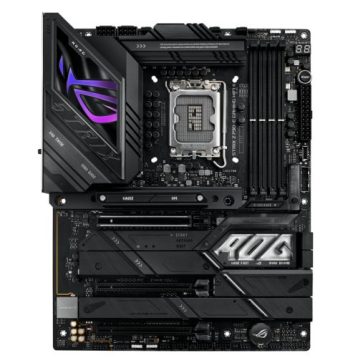

Asus ROG STRIX Z790-E GAMING WIFI II, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 7, 2.5G LAN, PCIe5, RGB, 5x M.2
Prices from
Incl. Tax: £509.15
Excl. Tax: £424.29
Description
Specification
• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5, Dual Channel
  Supports Intel Extreme Memory Profile (XMP) memory module
  ASUS Enhanced Memory Profile II (AEMP II)
  Supports DIMM Flex
  OptiMem II"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16 (support x16 mode)
  2 x PCIe 4.0 x16 (support x4 mode)
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe 5.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2280) - PCIe 4.0 x4
  1 x M.2 (2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - SATA & PCIe 4.0 x4
• RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10"
• Wireless: "Intel Wi-Fi 7
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate.
  Bluetooth v5.4"
• LAN: 2.5GB LAN
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• USB Ports Supported: "Rear:
  1 x USB 20Gbps Type-C
  11 x USB 10Gbps (10 Type-A, 1 Type-C)

  Front:
  1 x USB 20Gbps Type-C with up to 30W PD Fast-charge
  4 x USB 5Gbps
  6 x USB 2.0"
• Back Panel I/O Ports: "1 x USB 20Gbps Type-C
  11 x USB 10Gbps (10 Type-A, 1 Type-C)
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Intel 2.5Gb Ethernet
  5 x Gold-plated audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  5 x 4-pin Chassis Fan
  1 x 24-pin Main
  2 x 8-pin +12V
  5 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 20Gbps Type-C (30W PD Fast-charge)
  2 x USB 5Gbps
  3 x USB 2.0
  3 x Addressable Gen2
• .: 1 x Alternation PCIe Mode Switch
  1 x AURA RGB
  1 x CPU over voltage jumper
  1 x Front panel audio
  1 x Start button
  1 x 20-3 pin System Panel
  1 x Thermal Sensor
  1 x Thunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x Thermal pad for M.2
  1 x ASUS Wi-Fi Q-Antenna
  1 x Cable ties package
  1 x M.2 backplate Q-Latch package
  1 x M.2 Q-Latch package
  1 x ROG key chain
  1 x ROG Strix stickers
  2 x M.2 Rubber Packages
  1 x M.2 backplate Rubber Package
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: 2.5GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
• #Hide#RGB Lighting: Out of the box RGB lighting
View
View

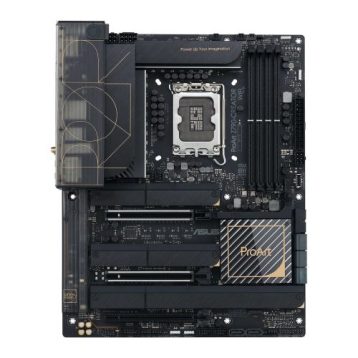

Asus PROART Z790-CREATOR WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi 6E, 10G & 2.5G LAN, PCIe5, 4x M.2
Prices from
Incl. Tax: £545.35
Excl. Tax: £454.46
Description
Specification
• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7200(OC)
• Maximum Memory: 128GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  2 x Thunderbolt 4 ports (USB-C) support DP & Thunderbolt video outputs
• PCI/PCI Express: 2 x PCIe 5.0 x16 (support x16 or x8/x8 modes)
  1 x PCIe 4.0 x16 (supports x4 mode)
• Storage: 8 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2242/2260/2280) - PCIe
  1 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• RAID: "Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10"
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3*
• LAN: 10GB LAN & 2.5GB LAN
• Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: 2 x Thunderbolt 4 Type-C (at back)
  6 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 (at mid-board)
  4 x USB 2.0 (at mid-board)
  1 x Front Panel Type-C USB 3.2 Gen2x2 Connector
• Back Panel I/O Ports: 2 x Thunderbolt 4 USB Type-C
  6 x USB 3.2 Gen2 Type-A
  2 x DisplayPort (Input only)
  1 x HDMI
  1 x ASUS Wi-Fi Module
  1 x Marvell AQtion 10Gb Ethernet
  1 x Intel 2.5Gb Ethernet
  5 x Audio jacks
  1 x BIOS FlashBack button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  5 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V
  1 x 4-pin +12V
  1 x 6-pin +12V
  4 x M.2 (Key M)
  8 x SATA 6Gb/s
  1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen1
• .: 2 x USB 2.0
  3 x Addressable Gen2
  1 x AURA RGB
  1 x Clear CMOS
  1 x COM Port
  1 x CPU Over Voltage jumper
  1 x Front Panel Audio
  1 x M.2 (Key E)
  1 x SPI TPM (14-1pin)
  1 x 20-3 pin System Panel
  1 x Thermal Sensor
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 2.4000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
View
View

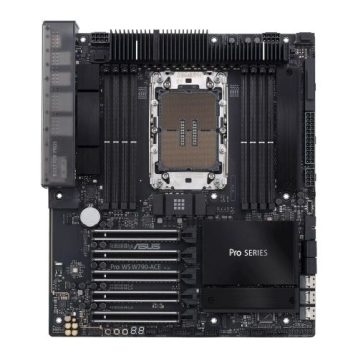

Asus PRO WS W790-ACE, Workstation, Intel W790, LGA4677, CEB, 8 DDR5, 10G & 2.5G LAN, IPMI Remote Management, SlimSAS, PCIe5, 2x M.2
Prices from
Incl. Tax: £817.48
Excl. Tax: £681.23
Description
Specification
• Motherboard Type: Server / Workstation
• Form Factor: CEB
• Socket: Intel 4677
• Chipset: Intel W790
• #Hide#DDR Type: DDR5
• CPU Support: For Xeon W-3400 and W-2400 Series Processors
  Supports Intel Turbo Boost Max Technology 3.0

  Click here for CPU support
• RAM Technology: DDR5 (Quad Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: Up to 6800(OC) ECC Registered Memory
• Maximum Memory: 2048GB
• Graphics: -
• Graphics Ports: -
• PCI/PCI Express: "5 x PCIe 5.0 x16 (supports x16, x16, x16, x0/x8, x16/x8 modes)"
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2280) - PCIe

  3 x SlimSAS ports:
  SlimSAS_1 - PCIe 3.0 x4 NVMe device
  SlimSAS_2 - PCIe 4.0 x4 or up to 4 SATA devices via a transfer cable*
  SlimSAS_3 - PCIe 4.0 x4 NVMe device

  *The cable is purchased separately
• RAID: "4 x SATA - Supports Intel Virtual RAID on CPU (Intel VROC) and Intel Volume Management Device (Intel VMD)

  Intel VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC HW_Key is purchased separately"
• Wireless: -
• LAN: 10GB LAN & 2.5GB LAN
• Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
  4 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 Type-A (at mid-board)
  12 x USB 2.0 (8 at back, 4 at mid-board)
  1 x USB 3.2 Gen2x2 Type-C front panel connector"
• Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
  4 x USB 3.2 Gen2 Type-A
  8 x USB 2.0
  1 x Marvell AQtion 10Gb Ethernet
  1 x Intel 2.5Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  5 x 4-pin Chassis Fan
  1 x W_PUMP+
  2 x 24-pin Main
  4 x 8-pin +12V
  1 x 8-pin PCIe
  2 x M.2 (Key M)
  3 x SlimSAS
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen1
• .: 2 x USB 2.0
  1 x BMC
  1 x COM Port
  1 x FlexKey button
  1 x Front Panel Audio
  1 x LN2 Mode jumper
  1 x ReTry button
  1 x Start button
  1 x SPI TPM (14-1pin)
  1 x 20-3 pin System Panel
• .: 1 x Thermal Sensor
  1 x VROC Key
• Accessories: 2 x SATA 6Gb/s cables
  1 x Q-connector
  1 x M.2 Rubber Package
  1 x M.2 backplate Rubber Package
  1 x ACC Express Activation Key Card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 3.4000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
View
View

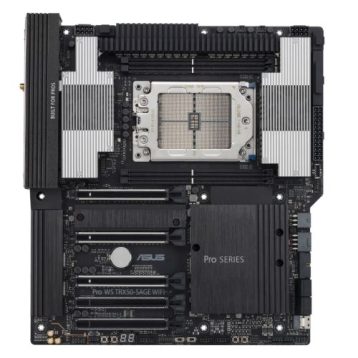

Asus PRO WS TRX50-SAGE WIFI, Workstation, AMD TRX50, sTR5, CEB, 4 DDR5 ECC, Wi-Fi 7, 10G & 2.5G LAN, SlimSAS, PCIe5, 3x M.2
Prices from
Incl. Tax: £857.95
Excl. Tax: £714.96
Description
Specification
• Motherboard Type: Server / Workstation
• Form Factor: CEB
• Socket: AMD sTR5
• Chipset: AMD TRX50
• #Hide#DDR Type: DDR5
• CPU Support: Ryzen Threadripper PRO 7000 WX-Series
  Ryzen Threadripper 7000 Series Processors
• RAM Technology: "DDR5, ECC Registered Memory
  4 Channel"
• RAM Slots: 4 x DIMM
• RAM Speeds: Varies depending on CPU and memory configuration
• Maximum Memory: 1024GB
• Graphics: -
• Graphics Ports: -
• PCI/PCI Express: 2 x PCIe 5.0 x16 slots
  1 x PCIe 5.0 x16 slot (x8 mode)
  1 x PCIe 4.0 x16 slot
  1 x PCIe 4.0 x16 slot (x4 mode)
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 5.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 5.0 x4
  1 x M.2 (2280) - PCIe 4.0 x4
  1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
• RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10
• Wireless: "Wi-Fi 7
  2x2 Wi-Fi 7 (802.11be)
  Supports 2.4/5/6GHz frequency band
  Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps
  Bluetooth v5.4"
• LAN: 10GB LAN & 2.5GB LAN
• Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x USB 20Gbps Type-C
  6 x USB 10Gbps Type-A
  2 x USB 2.0

  Front:
  1 x USB 20Gbps Type-C (up to 27W PD/QC4+)
  2 x USB 5Gbps
  4 x USB 2.0
• Back Panel I/O Ports: 1 x USB 20Gbps Type-C
  6 x USB 10Gbps Type-A
  2 x USB 2.0
  1 x Wi-Fi Module
  1 x Marvell AQtion 10Gb Ethernet
  1 x Intel 2.5Gb Ethernet
  2 x Audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x W_PUMP+
  4 x 4-pin Chassis Fan
  2 x 4-pin VRM Fan
  2 x 24-pin Main
  2 x 8-pin +12V
  2 x 8-pin PCIe to CPU power
  1 x 6-pin PCIe
  1 x 8-pin PCIe
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
• .: 1 x SlimSAS
  1 x USB 20Gbps Type-C
  1 x USB 5Gbps
  2 x USB 2.0
  1 x BMC header
  1 x COM Port
  1 x USB4 header
  1 x FlexKey button
  1 x Front panel audio
  1 x Start button
• .: 1 x Safe boot button
  1 x ReTry button
  1 x LN2 mode jumper
  1 x Slow mode switch
  1 x SPI TPM (14-1pin)
  1 x 10-1 pin system panel
  1 x Chassis intrusion
  1 x Thermal Sensor
• Accessories: 2 x SATA 6Gb/s cables
  1 x CPU 8-pin to PCIe 8-pin adapter cable package
  1 x Thermistor cable pack
  1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
  1 x M.2 Q-Latch package(2 in 1)
  2 x M.2 Rubber Packages
  1 x Q-connector
  1 x ACC Express Activation Key Card
  1 x QSG
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 4.2000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
View
View

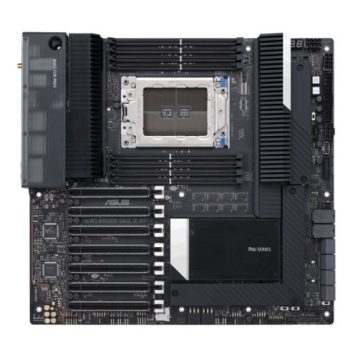

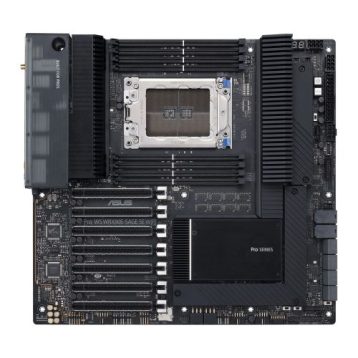

Asus PRO WS WRX80E-SAGE SE WIFI, Workstation, AMD WRX80, sWRX8, EATX, 8 DDR4, XFire/SLI, AX Wi-Fi, Dual 10G LAN, 3x M.2
Prices from
Incl. Tax: £1,044.59
Excl. Tax: £870.49
Description
Specification
• Motherboard Type: Server / Workstation
• Form Factor: ATX
• Socket: AMD WRX8
• Chipset: AMD WRX80
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Eight Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: "3200/3000/2933/2800/2666/2400/2133 MHz

  ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory"
• Maximum Memory: 2048GB
• Graphics: -
• Graphics Ports: -
• Multi-GPU Support: Supports NVIDIA 4-Way SLI Technology
  Supports AMD 4-Way CrossFireX Technology
• PCI/PCI Express: 7 x PCIe 4.0/3.0 x16*

  * Support PCIe bandwidth bifurcation for RAID on CPU function
• Storage: "8 x SATA III
  3 x M.2 (2242/2260/2280/22110) - SATA & PCIe
  2 x U.2 - supports U.2 NVMe device and up to 4 SATA devices*

  *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately*
  "
• RAID: "RIAD 0, 1, 10"
• Wireless: Intel Wi-Fi 6 AX200
  2x2 Wi-Fi 6 support 1024QAM/OFDMA/MU-MIMO
  Supports up to 2.4Gbps max data rate
  Supports 2.4/5GHz Dual-Band
  Supports channel bandwidth: HT20/HT40/HT80/HT160
  Supports PCIe interface
  Bluetooth v5.1
• LAN: Dual 10GB LAN
• Audio: Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: 1 x USB 3.2 Gen2x2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-C (at back)
  8 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 Type-A (at mid-board)
  4 x USB 2.0 (at mid-board)
  1 x USB 3.2 Gen2 Type-C front panel connector
• Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
  9 x USB 3.2 Gen2 (8 x Type-A + 1 x Type-C)
  1 x ASUS Wi-Fi Module
  2 x Intel X550-AT2 dual 10Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  6 x 4-pin Chassis Fan
  1 x VRM heatsink Fan
  1 x Chipset Fan
  1 x 24-pin Main
  2 x 8-pin +12V
  2 x 6-pin PCIe Graphics Card
  1 x 8-pin PCIe
  3 x M.2 (Key M)
  8 x SATA 6Gb/s
  2 x U.2
• .: 1 x USB 3.2 Gen2 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x BMC switch
  1 x IPMI switch
  1 x Messange LED header
  1 x Micro SD card
  2 x LAN LED
  1 x Location LED
  1 x Location button
• .: 1 x PSU_SMB
  1 x SMART_PSU switch
  1 x VGA switch
  1 x VGA header
  1 x VPP_I2C
  1 x COM Port
  1 x FlexKey button
  1 x Front Audio
  1 x SPI TPM (14-1pin)
  1 x Start button
  1 x 20-3 pin System Panel w/ Chassis intrude function
  1 x RTC Battery
  1 x Thermal Sensor
• Accessories: 6 x SATA cables
  1 x VGA cable
  1 x ASUS 2x2 Dual-Band Wi-Fi antennas
  1 x Hyper M.2 X16 Gen 4 Card
  3 x M.2 Rubber Packages
  3 x M.2 SSD screw packages
  1 x Q-connector
  1 x Support DVD
  1 x User manual
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 4.8000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
View
View

Asus PRO WS WRX80E-SAGE SE WIFI II, Workstation, AMD WRX80, sWRX8, EATX, 8 DDR4, SLI, Wi-Fi 6E, Dual 10G LAN, Hyper M.2 Card, 3x M.2
Prices from
Incl. Tax: £1,121.36
Excl. Tax: £934.47
Description
Specification
• Motherboard Type: Server / Workstation
• Form Factor: Extended ATX
• Socket: AMD WRX8
• Chipset: AMD WRX80
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Eight Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: "Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration"
• Maximum Memory: 2048GB
• Graphics: -
• Graphics Ports: -
• Multi-GPU Support: Supports NVIDIA 4-Way/3-Way/2-Way SLI Technology
• PCI/PCI Express: 7 x PCIe 4.0/3.0 x16

  * Support PCIe bandwidth bifurcation for RAID on CPU function
• Storage: "8 x SATA III
  3 x M.2 (2242/2260/2280/22110) - SATA & PCIe
  2 x U.2 - supports U.2 NVMe device and up to 4 SATA devices*

  *The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately*"
• RAID: Supports NVMe RAID configurations via M.2 storages
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3
• LAN: Dual 10GB LAN
• Audio: Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: 1 x USB 3.2 Gen2x2 Type-C (at back)
  1 x USB 3.2 Gen2 Type-C (at back)
  8 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 Type-A (at mid-board)
  4 x USB 2.0 (at mid-board)
  1 x USB 3.2 Gen2 Type-C front panel connector
• Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
  9 x USB 3.2 Gen2 (8 Type-A, 1 Type-C)
  1 x Wi-Fi Module
  2 x Intel X550-AT2 dual 10Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button"
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  6 x 4-pin Chassis Fan
  1 x VRM heatsink Fan
  1 x Chipset Fan
  1 x 24-pin Main
  2 x 8-pin +12V
  2 x 6-pin PCIe Graphics Card
  1 x 8-pin PCIe
  3 x M.2 (Key M)
  8 x SATA 6Gb/s
  2 x U.2
• .: 1 x USB 3.2 Gen2 Type-C
  1 x USB 3.2 Gen1
  2 x USB 2.0
  1 x BMC switch
  1 x IPMI switch
  1 x Messange LED
  1 x Micro SD card socket
  2 x LAN LED
  1 x Location LED
  1 x Location button
• .: 1 x PSU_SMB
  1 x SMART_PSU switch
  1 x VGA switch
  1 x VGA
  1 x VPP_I2C
  1 x COM Port
  1 x FlexKey button
  1 x Front Panel Audio
  1 x SPI TPM (14-1pin)
  1 x Start button
  1 x 20-3 pin System Panel
  1 x RTC Battery
  1 x Thermal Sensor
• Accessories: 6 x SATA 6Gb/s cables
  1 x VGA cable
  1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas
  1 x Hyper M.2 X16 Gen 4 Card
  M.2 SSD screws for Hyper M.2 X16 Gen 4 Card
  3 x Q Latch
  7 x M.2 Rubber Packages
  1 x Q-connector
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 5.8000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
View
View
